Ball Valve type 375 with solvent cement socket cPVC — نظام مياه ساخنة وضغط — SCH80 / ASTM D2466
Ball Valve type 375 with solvent cement socket cPVC — نظام مياه ساخنة وضغط — SCH80 / ASTM D2466 مصنف فنيًا حسب المادة والاستخدام والمعيار وفئة الخدمة وطريقة التوصيل، بحيث تظهر المقاسات والألوان كخيارات داخل نفس المنتج عند تطابق الاستخدام والمعيار. الاستخدامات المناسبة: Hot and cold water; industrial process fluids; chemical-resistant pressure applications where permitted. المعيار/المصدر الفني: ASTM D2466. فئة الضغط/الخدمة: SCH80. طريقة التوصيل: Solvent Cement / Threaded connection as applicable. غير مناسب لـ: Gas; sewer; electrical conduit. يعتمد توليد ملف TDS على قالب المنتج والمتغيرات المختارة فقط دون خلط بين أنظمة مختلفة.
بيانات المنتج الفنية

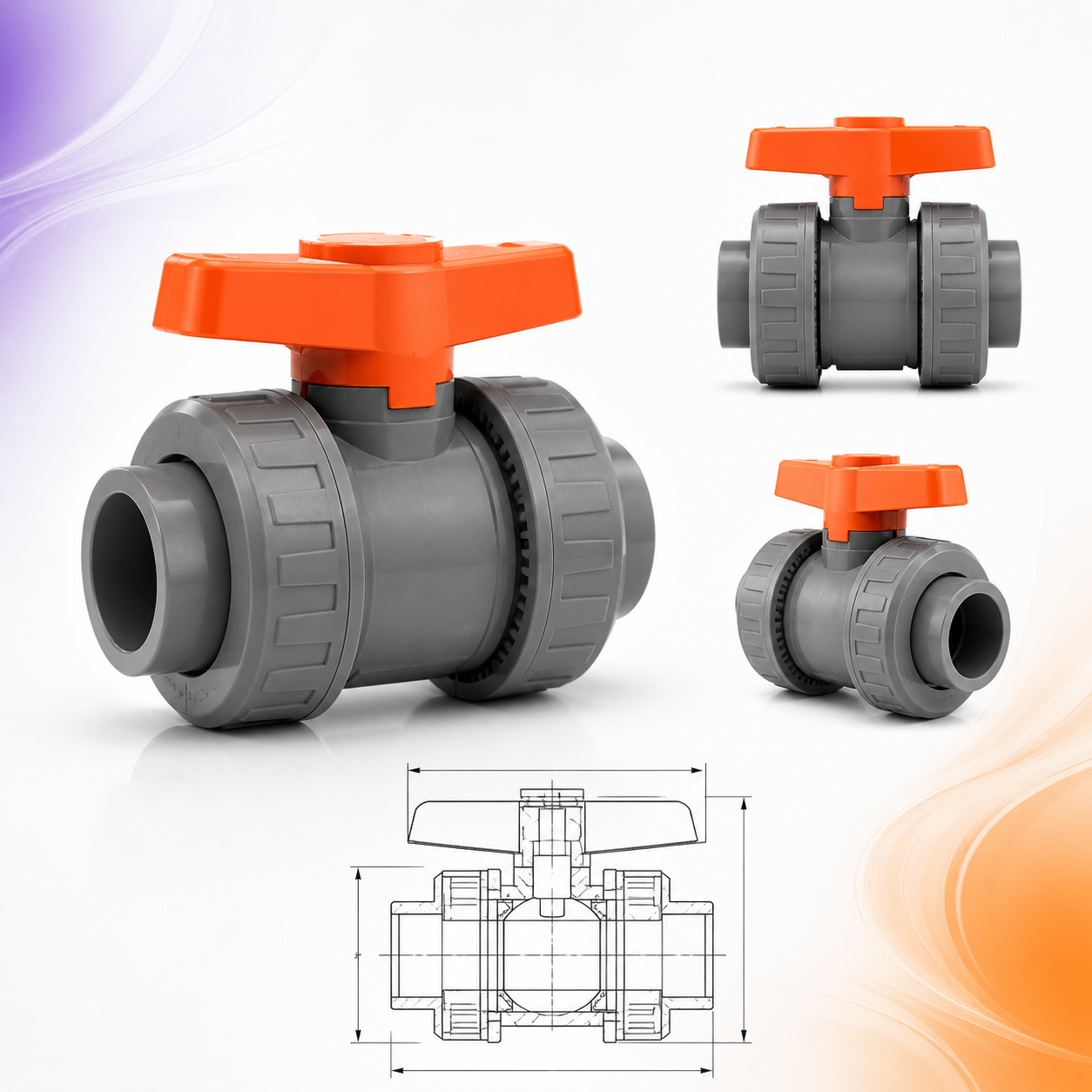

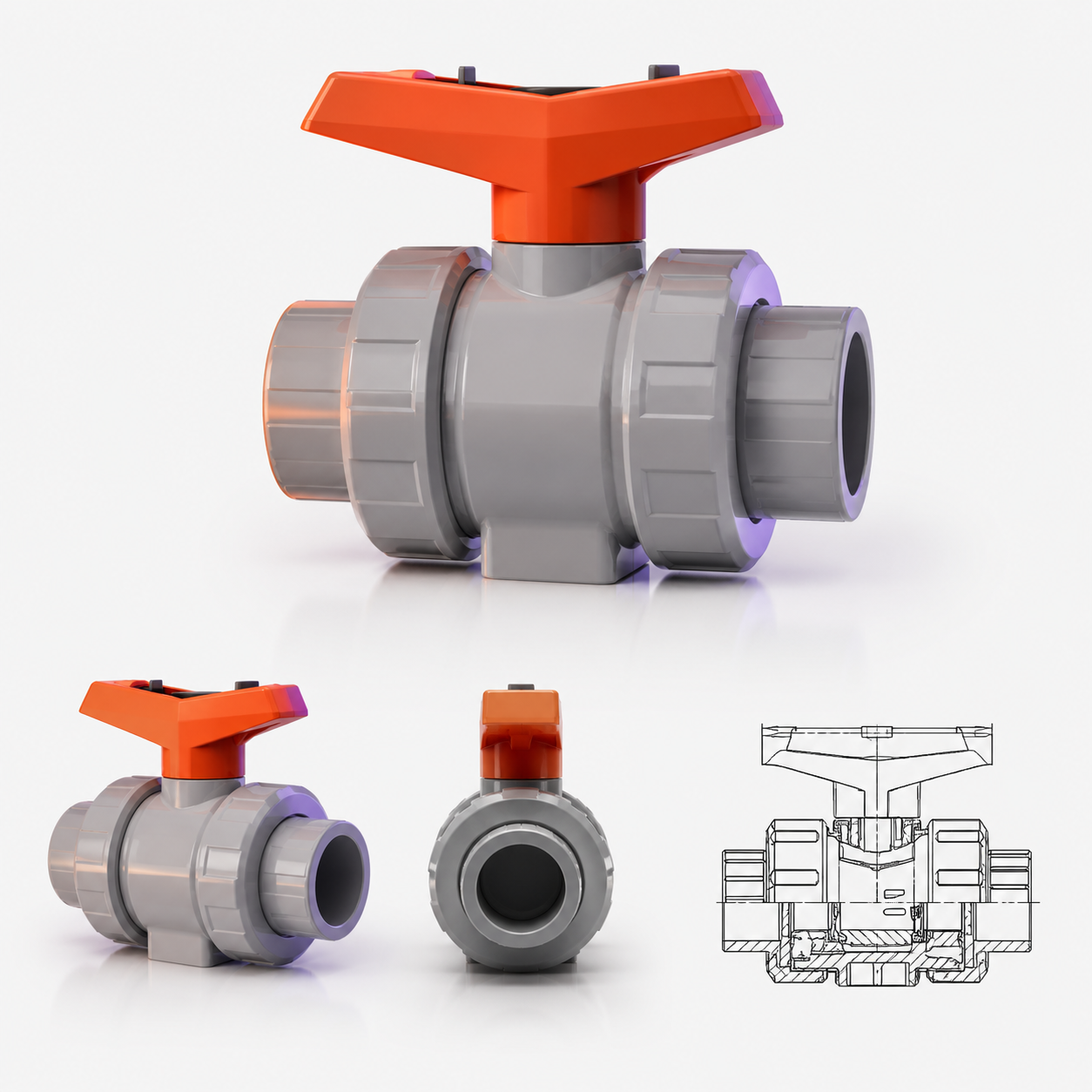

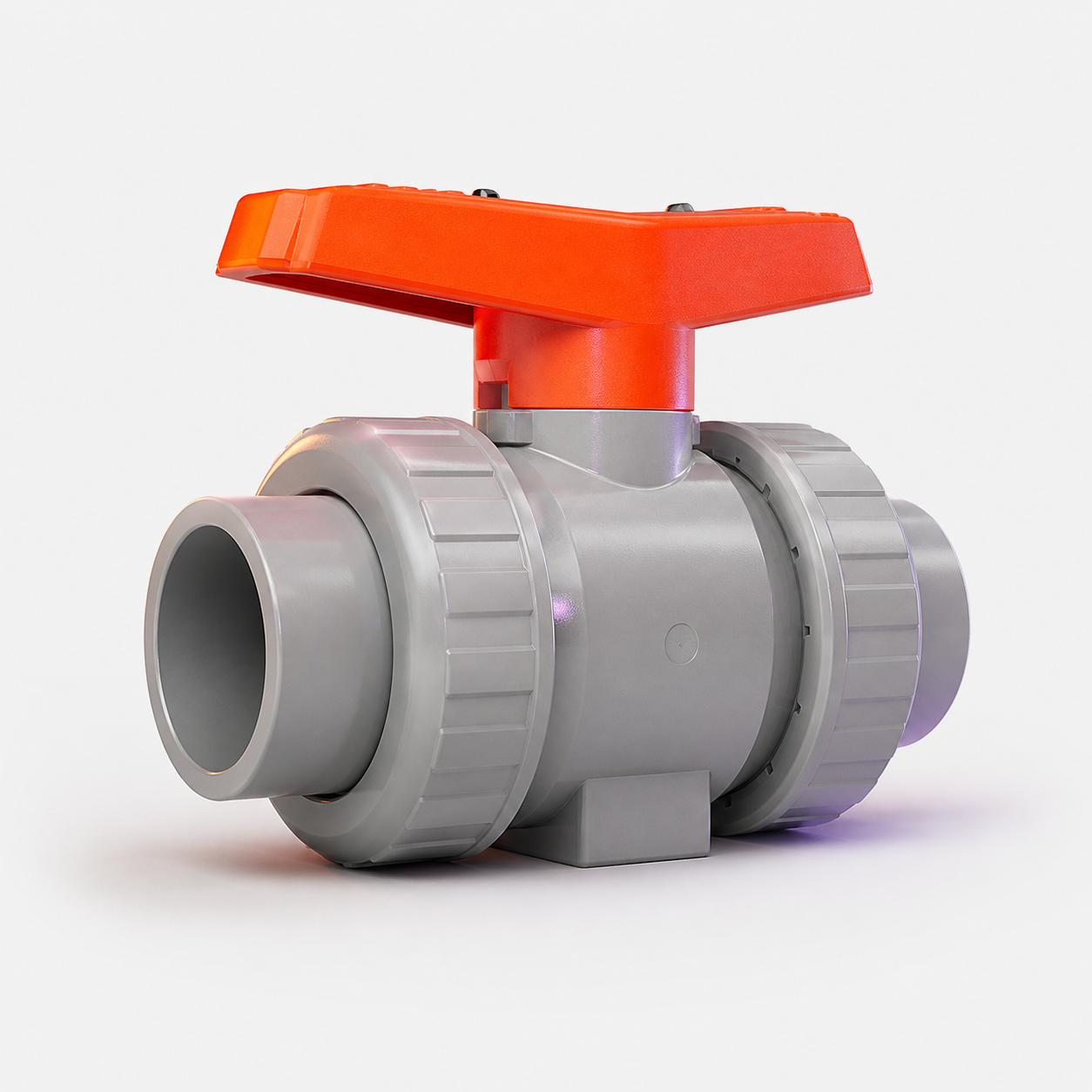

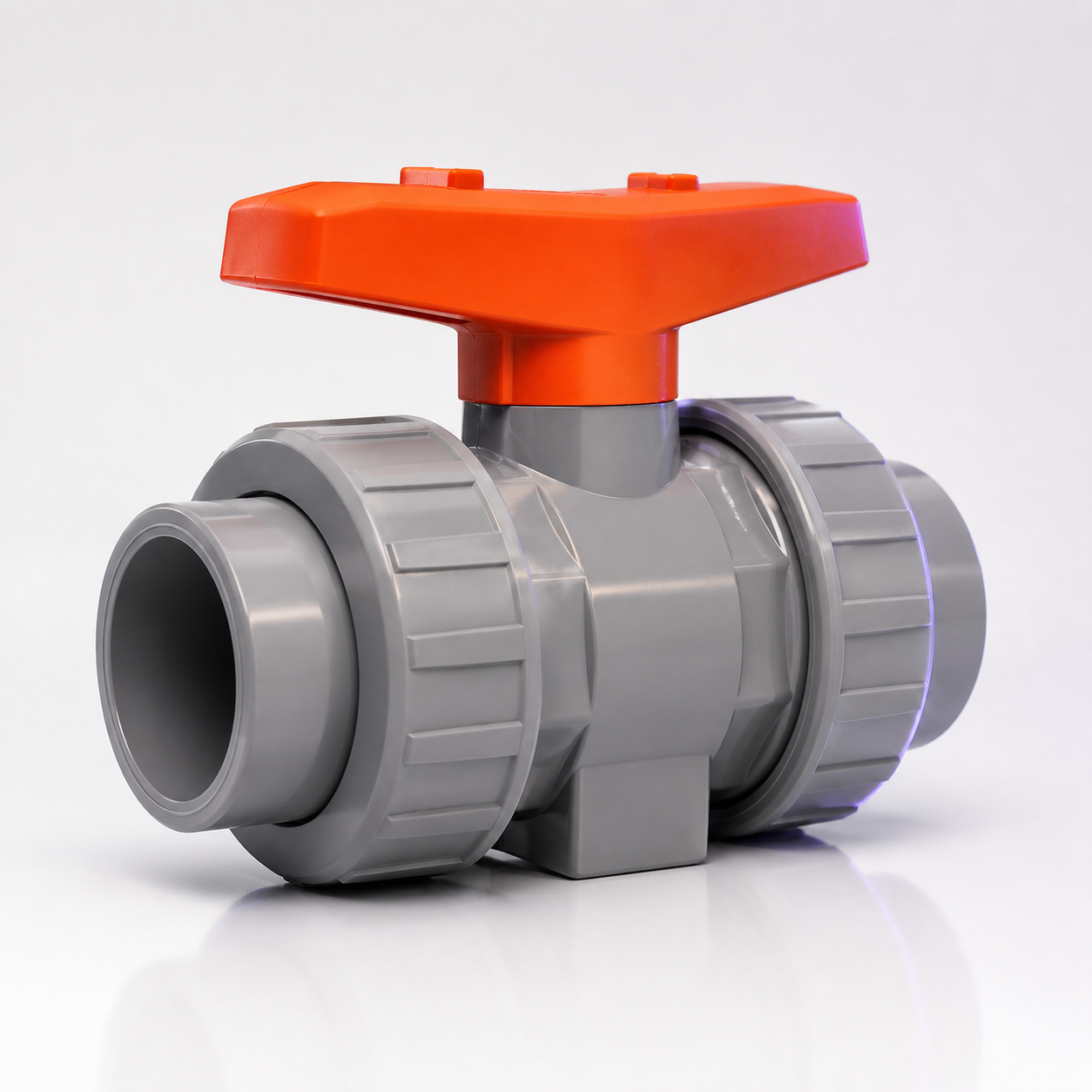

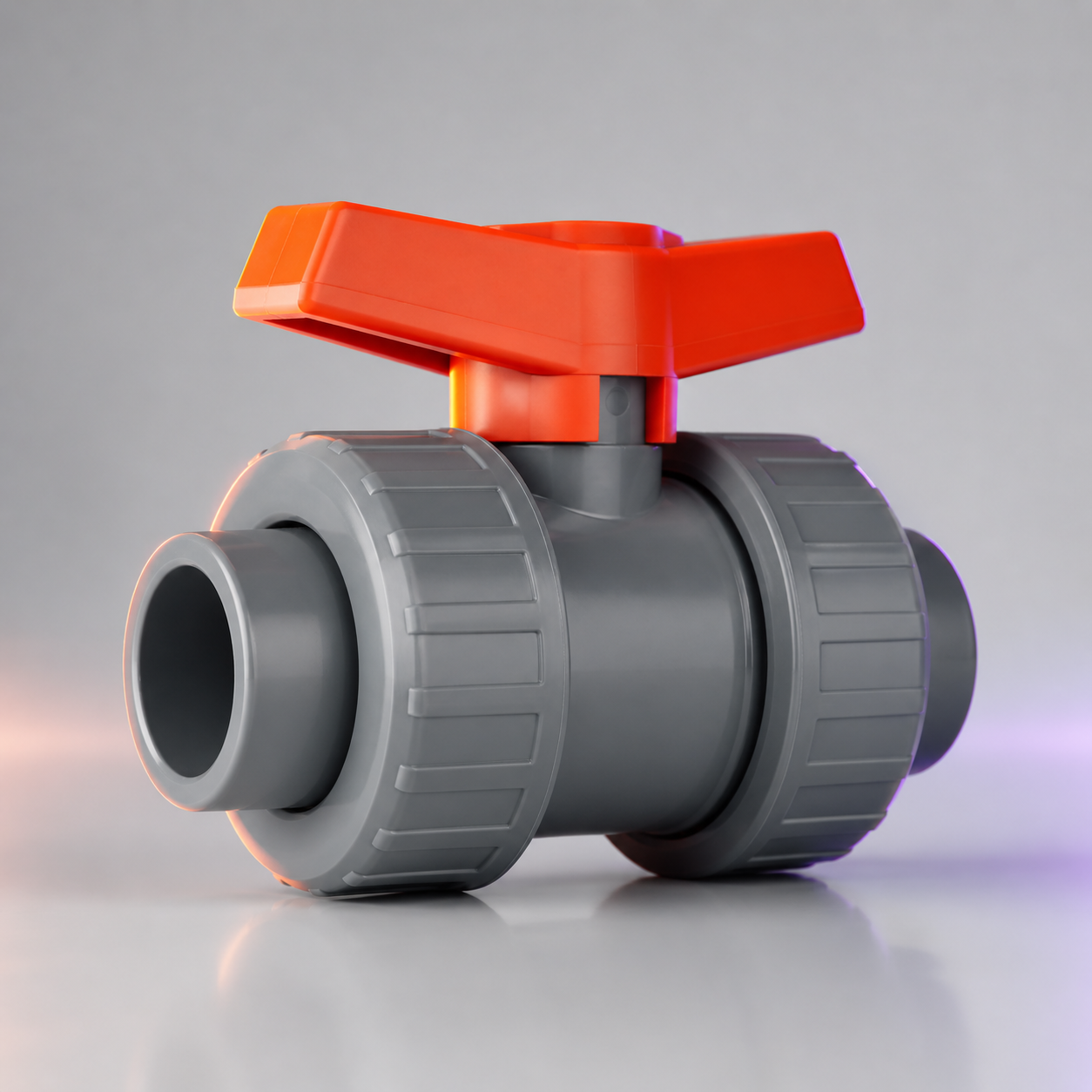

cPVC Ball Valve type 375 with solvent cement socket — cPVC Schedule 80 Pressure System — SCH80 / ASTM D2466
cPVC Ball Valve type 375 with solvent cement socket — cPVC Schedule 80 Pressure System — SCH80 / ASTM D2466 is a Takween Plast product family configured for Hot and cold water; industrial process fluids; chemical-resistant pressure applications where permitted. The product is classified by material, application, standard, service class and connection method to prevent technical mixing with unsuitable systems. Applicable standard/source group: ASTM D2466. Service class/rating: SCH80. Connection method: Solvent Cement / Threaded connection as applicable. Available size variants: 1/2"; 1"; 1 1/2"; 1 1/4"; 2"; 3/4". Not suitable for: Gas; sewer; electrical conduit. TDS generation uses the selected parent template and the variant table, without inferring application or pressure class from color alone.
Product Identity
| Field | Value |
|---|
| Parent Product ID | TP-CPVC-PRS-BALL-VALVE-TYPE-37-SCH80-ASTM-D2466-2031B |
| Family | cPVC Pressure / Hot Water |
| System Type | cPVC Schedule 80 Pressure System |
| Product Type | Ball Valve type 375 with solvent cement socket |
| Material | cPVC |
| Standard | ASTM D2466 |
| Pressure / Class / Duty | SCH80 |
| TDS Template | TDS-CPVC-SCH80 |
Applications & Use Limits
| Field | Value |
|---|
| Allowed Applications | Hot and cold water; industrial process fluids; chemical-resistant pressure applications where permitted |
| Not Suitable For | Gas; sewer; electrical conduit |
| Primary Jointing | Solvent Cement / Threaded connection as applicable |
| Available Colors | Grey |
| Available Sizes | 1/2"; 1"; 1 1/2"; 1 1/4"; 2"; 3/4" |
Variant Matrix
| Variant ID | Label | Size | Color | Class / Duty | Jointing | UOM | Status | Source |
|---|
| TP-CPVC-PRS-BALL-VALVE-TYPE-37-SCH80-ASTM-D2466-2031B-112-GREY-AB7A | 1 1/2" / Grey / SCH80 | 1 1/2" | Grey | SCH80 | Solvent Cement / Threaded connection as applicable | pcs | READY_FOR_AI_IMPORT | Fittings 660 |
| TP-CPVC-PRS-BALL-VALVE-TYPE-37-SCH80-ASTM-D2466-2031B-114-GREY-D850 | 1 1/4" / Grey / SCH80 | 1 1/4" | Grey | SCH80 | Solvent Cement / Threaded connection as applicable | pcs | READY_FOR_AI_IMPORT | Fittings 659 |
| TP-CPVC-PRS-BALL-VALVE-TYPE-37-SCH80-ASTM-D2466-2031B-1-GREY-FEC6 | 1" / Grey / SCH80 | 1" | Grey | SCH80 | Solvent Cement / Threaded connection as applicable | pcs | READY_FOR_AI_IMPORT | Fittings 658 |
| TP-CPVC-PRS-BALL-VALVE-TYPE-37-SCH80-ASTM-D2466-2031B-12-GREY-CDA5 | 1/2" / Grey / SCH80 | 1/2" | Grey | SCH80 | Solvent Cement / Threaded connection as applicable | pcs | READY_FOR_AI_IMPORT | Fittings 656 |
| TP-CPVC-PRS-BALL-VALVE-TYPE-37-SCH80-ASTM-D2466-2031B-2-GREY-FDFF | 2" / Grey / SCH80 | 2" | Grey | SCH80 | Solvent Cement / Threaded connection as applicable | pcs | READY_FOR_AI_IMPORT | Fittings 661 |
| TP-CPVC-PRS-BALL-VALVE-TYPE-37-SCH80-ASTM-D2466-2031B-34-GREY-19A4 | 3/4" / Grey / SCH80 | 3/4" | Grey | SCH80 | Solvent Cement / Threaded connection as applicable | pcs | READY_FOR_AI_IMPORT | Fittings 657 |
TDS Profile
| Field | Value |
|---|
| TDS Scope | Parent-level TDS with selected variant table |
| Template Name | cPVC Schedule 80 Hot/Cold Water TDS |
| Variant Fields | Size; schedule; jointing; fitting type; color |
| Fixed Sections | Product description; material; applicable standards; applications; limitations; quality/testing; installation/handling; certification claim level |
| Fixed Material Properties | cPVC Schedule 80 system; service temperature up to 93°C per catalog; solvent cement or threaded transition as applicable |
| Applicable Standards | ASTM D2466 |
| Primary Source | Blue 2025 with new products.pdf / ASTM PVC&cPVC Fittings.pdf |
| Source Reference | Fittings!R656, Fittings!R657, Fittings!R658, Fittings!R659, Fittings!R660, Fittings!R661 |
| AI PDF Rule | Generate PDF only from parent + selected variant rows; do not infer application, standard or pressure from color; keep Not Suitable For visible. |
| Import Status | READY_FOR_AI_IMPORT |
Marketplace Content
| Field | Value |
|---|
| SEO Title | cPVC Ball Valve type 375 with solvent cement socket — cPVC Schedule 80 Pressure System — SCH80 / ASTM D2466 |
| Meta Description | cPVC Ball Valve type 375 with solvent cement socket — cPVC Schedule 80 Pressure System — SCH80 / ASTM D2466 engineered for hot and cold water, with selectable v |
| Search Keywords | Takween Plast, cPVC, Ball Valve type 375 with solvent cement socket, cPVC Pressure / Hot Water, ASTM D2466, SCH80, Hot & Cold Water Plumbing |
| Amazon Title | |
Bullet Points
- Engineered for: Hot and cold water.
- Technical classification: cPVC / ASTM D2466 / SCH80.
- Variants: size and options are selectable under one parent product.
- TDS-ready: linked to TDS-CPVC-SCH80.
- Not suitable for: Gas.
QA / Engineering Review
